Create a Windows 11 compatible assets list

1

Create the custom asset field

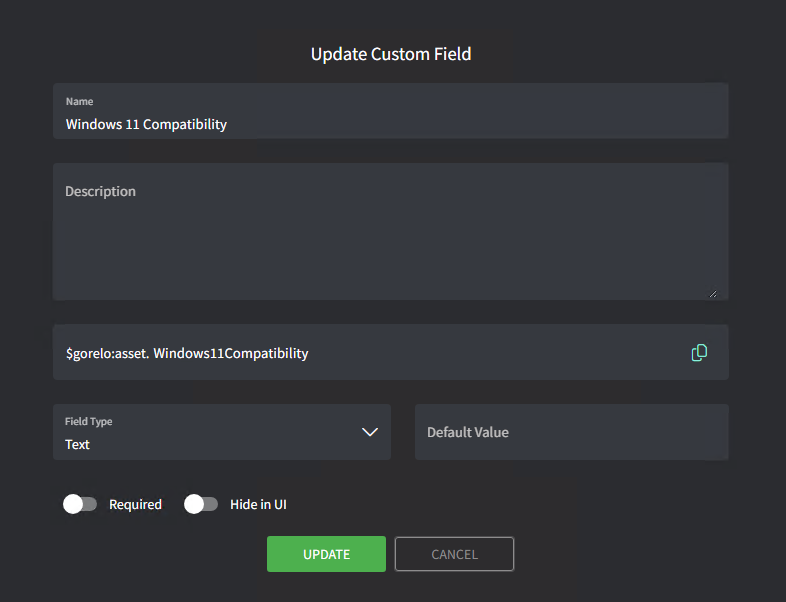

Navigate to Settings-> Assets-> Custom Fields
Add custom field with the following details
- Name: Windows 11 Compatibility
- Variable: Windows11Compatibility

2

Create the tag

Navigate to Settings → Tags
Select Asset Policy Tags from the top
Click ‘Create an Assets Tag’ down the bottom-left:
- Tag: Win11Compatible
- Property: Registry Key
- Condition: Equals
- Path: HKEY_LOCAL_MACHINE\SOFTWARE\Windows11Compatibility\Status
- Value: Compatible
Click ‘Save’
Click ‘Create an Assets Tag’ down the bottom-left:
- Tag: Win11NotCompatible
- Property: Registry Key
- Condition: Equals
- Path: HKEY_LOCAL_MACHINE\SOFTWARE\Windows11Compatibility\Status
- Value: NotCompatible
Click ‘Save’
Click ‘Create an Assets Tag’ down the bottom-left:
- Tag: Win11CheckFailed
- Property: Registry Key
- Condition: Equals
- Path: HKEY_LOCAL_MACHINE\SOFTWARE\Windows11Compatibility\Status
- Value: CheckFailed
Click ‘Save’

3

Write the script

Navigate to Scripts
Create a script with the following details:
- Name: Windows 11 Compatibility
- Content:

# Windows 11 Compatibility Check
# Adapted from Microsoft's HardwareReadiness.ps1

# Registry path and name
$RegistryPath = "HKLM:\SOFTWARE\Windows11Compatibility"
$RegistryName = "Status"

# Function to write to registry
function Write-Win11Registry {
    param(
        [string]$Status
    )

    try {
        # Create registry path if it doesn't exist
        if (!(Test-Path $RegistryPath)) {
            New-Item -Path $RegistryPath -Force | Out-Null
        }

        # Write the value
        New-ItemProperty -Path $RegistryPath -Name $RegistryName -Value $Status -PropertyType String -Force | Out-Null
    }
    catch {
        Write-Output "Failed to write to registry: $($_.Exception.Message)"
    }
}

$Source = @"
using Microsoft.Win32;
using System;
using System.Runtime.InteropServices;

    public class CpuFamilyResult
    {
        public bool IsValid { get; set; }
        public string Message { get; set; }
    }

    public class CpuFamily
    {
        [StructLayout(LayoutKind.Sequential)]
        public struct SYSTEM_INFO
        {
            public ushort ProcessorArchitecture;
            ushort Reserved;
            public uint PageSize;
            public IntPtr MinimumApplicationAddress;
            public IntPtr MaximumApplicationAddress;
            public IntPtr ActiveProcessorMask;
            public uint NumberOfProcessors;
            public uint ProcessorType;
            public uint AllocationGranularity;
            public ushort ProcessorLevel;
            public ushort ProcessorRevision;
        }

        [DllImport("kernel32.dll")]
        internal static extern void GetNativeSystemInfo(ref SYSTEM_INFO lpSystemInfo);

        public enum ProcessorFeature : uint
        {
            ARM_SUPPORTED_INSTRUCTIONS = 34
        }

        [DllImport("kernel32.dll")]
        [return: MarshalAs(UnmanagedType.Bool)]
        static extern bool IsProcessorFeaturePresent(ProcessorFeature processorFeature);

        private const ushort PROCESSOR_ARCHITECTURE_X86 = 0;
        private const ushort PROCESSOR_ARCHITECTURE_ARM64 = 12;
        private const ushort PROCESSOR_ARCHITECTURE_X64 = 9;

        private const string INTEL_MANUFACTURER = "GenuineIntel";
        private const string AMD_MANUFACTURER = "AuthenticAMD";
        private const string QUALCOMM_MANUFACTURER = "Qualcomm Technologies Inc";

        public static CpuFamilyResult Validate(string manufacturer, ushort processorArchitecture)
        {
            CpuFamilyResult cpuFamilyResult = new CpuFamilyResult();

            if (string.IsNullOrWhiteSpace(manufacturer))
            {
                cpuFamilyResult.IsValid = false;
                cpuFamilyResult.Message = "Manufacturer is null or empty";
                return cpuFamilyResult;
            }

            string registryPath = "HKEY_LOCAL_MACHINE\\Hardware\\Description\\System\\CentralProcessor\\0";
            SYSTEM_INFO sysInfo = new SYSTEM_INFO();
            GetNativeSystemInfo(ref sysInfo);

            switch (processorArchitecture)
            {
                case PROCESSOR_ARCHITECTURE_ARM64:
                    if (manufacturer.Equals(QUALCOMM_MANUFACTURER, StringComparison.OrdinalIgnoreCase))
                    {
                        bool isArmv81Supported = IsProcessorFeaturePresent(ProcessorFeature.ARM_SUPPORTED_INSTRUCTIONS);

                        if (!isArmv81Supported)
                        {
                            string registryName = "CP 4030";
                            long registryValue = (long)Registry.GetValue(registryPath, registryName, -1);
                            long atomicResult = (registryValue >> 20) & 0xF;

                            if (atomicResult >= 2)
                            {
                                isArmv81Supported = true;
                            }
                        }

                        cpuFamilyResult.IsValid = isArmv81Supported;
                        cpuFamilyResult.Message = isArmv81Supported ? "" : "Processor does not implement ARM v8.1 atomic instruction";
                    }
                    else
                    {
                        cpuFamilyResult.IsValid = false;
                        cpuFamilyResult.Message = "The processor isn't currently supported for Windows 11";
                    }
                    break;

                case PROCESSOR_ARCHITECTURE_X64:
                case PROCESSOR_ARCHITECTURE_X86:
                    int cpuFamily = sysInfo.ProcessorLevel;
                    int cpuModel = (sysInfo.ProcessorRevision >> 8) & 0xFF;
                    int cpuStepping = sysInfo.ProcessorRevision & 0xFF;

                    if (manufacturer.Equals(INTEL_MANUFACTURER, StringComparison.OrdinalIgnoreCase))
                    {
                        try
                        {
                            cpuFamilyResult.IsValid = true;
                            cpuFamilyResult.Message = "";

                            if (cpuFamily >= 6 && cpuModel <= 95 && !(cpuFamily == 6 && cpuModel == 85))
                            {
                                cpuFamilyResult.IsValid = false;
                                cpuFamilyResult.Message = "";
                            }
                            else if (cpuFamily == 6 && (cpuModel == 142 || cpuModel == 158) && cpuStepping == 9)
                            {
                                string registryName = "Platform Specific Field 1";
                                int registryValue = (int)Registry.GetValue(registryPath, registryName, -1);

                                if ((cpuModel == 142 && registryValue != 16) || (cpuModel == 158 && registryValue != 8))
                                {
                                    cpuFamilyResult.IsValid = false;
                                }
                                cpuFamilyResult.Message = "PlatformId " + registryValue;
                            }
                        }
                        catch (Exception ex)
                        {
                            cpuFamilyResult.IsValid = false;
                            cpuFamilyResult.Message = "Exception:" + ex.GetType().Name;
                        }
                    }
                    else if (manufacturer.Equals(AMD_MANUFACTURER, StringComparison.OrdinalIgnoreCase))
                    {
                        cpuFamilyResult.IsValid = true;
                        cpuFamilyResult.Message = "";

                        if (cpuFamily < 23 || (cpuFamily == 23 && (cpuModel == 1 || cpuModel == 17)))
                        {
                            cpuFamilyResult.IsValid = false;
                        }
                    }
                    else
                    {
                        cpuFamilyResult.IsValid = false;
                        cpuFamilyResult.Message = "Unsupported Manufacturer: " + manufacturer + ", Architecture: " + processorArchitecture + ", CPUFamily: " + sysInfo.ProcessorLevel + ", ProcessorRevision: " + sysInfo.ProcessorRevision;
                    }
                    break;

                default:
                    cpuFamilyResult.IsValid = false;
                    cpuFamilyResult.Message = "Unsupported CPU category. Manufacturer: " + manufacturer + ", Architecture: " + processorArchitecture + ", CPUFamily: " + sysInfo.ProcessorLevel + ", ProcessorRevision: " + sysInfo.ProcessorRevision;
                    break;
            }
            return cpuFamilyResult;
        }
    }
"@
try {
    $exitCode = 0

    [int]$MinOSDiskSizeGB = 64
    [int]$MinMemoryGB = 4
    [Uint32]$MinClockSpeedMHz = 1000
    [Uint32]$MinLogicalCores = 2
    [Uint16]$RequiredAddressWidth = 64

    # Initialize result object
    $outObject = @{
        returnCode = -2
        returnResult = "FAILED TO RUN"
        returnReason = ""
        logging = ""
    }

    # Check Storage
    $osDrive = Get-WmiObject -Class Win32_OperatingSystem | Select-Object -Property SystemDrive
    $osDriveSize = Get-WmiObject -Class Win32_LogicalDisk -filter "DeviceID='$($osDrive.SystemDrive)'" | Select-Object @{Name = "SizeGB"; Expression = { $_.Size / 1GB -as [int] } }

    if ($osDriveSize.SizeGB -lt $MinOSDiskSizeGB) {
        $outObject.returnReason += "Storage, "
    }

    # Check Memory
    $memory = Get-WmiObject Win32_PhysicalMemory | Measure-Object -Property Capacity -Sum | Select-Object @{Name = "SizeGB"; Expression = { $_.Sum / 1GB -as [int] } }

    if ($memory.SizeGB -lt $MinMemoryGB) {
        $outObject.returnReason += "Memory, "
    }

    # Check TPM
    $tpm = Get-Tpm
    if (!$tpm.TpmPresent) {
        $outObject.returnReason += "TPM, "
    }
    else {
        $tpmVersion = Get-WmiObject -Class Win32_Tpm -Namespace root\CIMV2\Security\MicrosoftTpm | Select-Object -Property SpecVersion
        if ($tpmVersion.SpecVersion) {
            $majorVersion = $tpmVersion.SpecVersion.Split(",")[0] -as [int]
            if ($majorVersion -lt 2) {
                $outObject.returnReason += "TPM Version, "
            }
        }
    }

    # Check CPU and add CPU Family check
    Add-Type -TypeDefinition $Source
    $cpuDetails = @(Get-WmiObject -Class Win32_Processor)[0]

    if ($null -eq $cpuDetails) {
        $outObject.returnReason += "Processor (Not Found), "
    }
    else {
        $processorCheckFailed = $false

        # AddressWidth
        if ($null -eq $cpuDetails.AddressWidth -or $cpuDetails.AddressWidth -ne $RequiredAddressWidth) {
            $processorCheckFailed = $true
        }

        # ClockSpeed is in MHz
        if ($null -eq $cpuDetails.MaxClockSpeed -or $cpuDetails.MaxClockSpeed -le $MinClockSpeedMHz) {
            $processorCheckFailed = $true
        }

        # Number of Logical Cores
        if ($null -eq $cpuDetails.NumberOfLogicalProcessors -or $cpuDetails.NumberOfLogicalProcessors -lt $MinLogicalCores) {
            $processorCheckFailed = $true
        }

        # CPU Family
        $cpuFamilyResult = [CpuFamily]::Validate([String]$cpuDetails.Manufacturer, [uint16]$cpuDetails.Architecture)
        if (!$cpuFamilyResult.IsValid) {
            $processorCheckFailed = $true
        }

        if ($processorCheckFailed) {
            $outObject.returnReason += "Processor, "
        }
    }

    # Check SecureBoot
    try {
        $null = Confirm-SecureBootUEFI
    }
    catch {
        $outObject.returnReason += "SecureBoot, "
    }

    # Check for i7-7820hq exception
    try {
        $supportedDevices = @('surface studio 2', 'precision 5520')
        $systemInfo = @(Get-WmiObject -Class Win32_ComputerSystem)[0]

        if ($cpuDetails.Name -match 'i7-7820hq cpu @ 2.90ghz') {
            $modelOrSKUCheckLog = $systemInfo.Model.Trim()
            if ($supportedDevices -contains $modelOrSKUCheckLog) {
                $outObject.returnReason = ""  # Clear any CPU-related failures
            }
        }
    }
    catch {
        # Ignore i7 exception check failures
    }

    # Set final result
    $WIN11COMPATIBLE = $outObject.returnReason.Length -eq 0

    # Output result to object
    $outputObject = [pscustomobject]@{
        WIN11COMPATIBLE = $WIN11COMPATIBLE
        IncompatibleItems = $outObject.returnReason.TrimEnd(", ")
    }

    # Write to Gorelo custom field
    $result = if ($WIN11COMPATIBLE) { "Compatible" } else { "Not Compatible: $($outObject.returnReason.TrimEnd(', '))" }
    GoreloAction -SetCustomField -Name 'asset.Windows11Compatibility' -Value $result

    # Write to Registry
    if ($WIN11COMPATIBLE) {
        Write-Win11Registry -Status "Compatible"
    }
    else {
        Write-Win11Registry -Status "NotCompatible"
    }

    # Return the output object
    $outputObject
}
catch {
    # Create error output object
    $outputObject = [pscustomobject]@{
        WIN11COMPATIBLE = $false
        IncompatibleItems = "Error running compatibility check: $($_.Exception.Message)"
    }

    # Write error to Gorelo custom field
    GoreloAction -SetCustomField -Name 'asset.Windows11Compatibility' -Value "Error running check: $($_.Exception.Message)"

    # Write error to Registry
    Write-Win11Registry -Status "CheckFailed"

    # Return the error output object
    $outputObject
}

4

Deploy the script via a policy

Navigate to Policies
Edit an existing policy that covers the assets you want to check Windows 11 compatibility for
Add the ‘Windows 11 Compatibility’ script and set to repeat daily at your preferred time
Save and Distribute the policy

5

Create the View on the Assets list

Navigate to Assets
Click ‘Create view’ down the bottom left and use the following details:
- Title: Win11 Compatible
- Tags: Win11Compatible
Click ‘Save’
Do the same for Win11 NotCompatible and Win11 CheckFailed
